British SSP professional manufacturing CAM rotor pump, gear pump, disc pump 50 years, the world's leading brand.
Mechanical SEAL 7400.008N, SEAL R80 SS/CARBON/NBR, matching pumps N1-000L-H07 and other models
R&d, design and production of a wide range of cam-rotor pumps, gear pumps, disc pumps,
High quality cam-rotor pumps, disc pumps, gear pumps are used by high-end customers all over the world. British SSP sanitary gear pump is mainly used in
Nylon, polyester, polypropylene, polystyrene, polycarbonate and other textile and plastic polymer industries, but also in tobacco, food, chemical, pharmaceutical, paper,
It is widely used in brewing and other industries
SSP pumps have a long history, dating back to the Howard Pump Company, which was founded in Eastbourne, England
The Howard Pump Company developed the cam-rotor pump design concept and introduced the first SSP pumps to the market in 1940 during the post-war period
SSP pump. In 1958, former employees of the Howard Pump Company left the company and founded Stainless Steel Pump Co., LTD., where innovation developed
Stainless steel CAM rotor pump design concept. When the Pumps began to be made of stainless steel, the company changed its name to SSP Pumps Ltd. In 1987
SSP Pumps was acquired by the Alfa Laval Group. Stainless steel gear pumps are used in industrial manufacturing enterprises all over the world, widely used in chemical, food,
Pharmaceutical, tobacco and other related industrial manufacturing enterprises. Processing from low to high viscosity media such as: organic solid suspension reagents and pharmaceutical intermediates, cream cleanser shampoo, etc.
Gelatin gelatin and other emulsion mixture product manufacturing process.
Usage characteristics
High efficiency, low energy consumption, compact size, strong continuous operation, smooth operation, reversible operation, low shear pump, minimum pumping medium
Hygienic design, easy maintenance, EHEDG certification, ATEX approval
SSP pumps, SSP pumps,
S Series CAM rotor pump, Gear pump Series S, SSP pump SSP pumps
SSP Series S stainless steel rotary lobe pumps operate at the heart of industries worldwide,
fulfilling a wide range of application requirements throughout Chemical, Food, Pharmaceutical
and other related industries
Handling from low to high viscosity pumped media the characteristic smooth, low shear pumping
action is ideal for delicate media and where organic solids in suspension, creams, froths, gels,
emulsions and mixtures are to be pumped. Series S pumps are suitable for CIP (Cleaning In Place)
and SIP (Sterilisation In Place) and conform to USA 3A Sanitary Standard. In addition,
the Series S pump range is EHEDG accredited for the highest level of cleanability and is ATEX certified.
The Series S pump range has twelve pump head displacements ranging from 0.053 litres/rev to 3.53 litres/rev.
? Flow rates up to 106 m3/h
? Differential pressures up to 20 bar
? Port sizes from 25mm to 150mm
Flow up to 106 m 3/ h · Pressure: 20bar Caliber: 25-150 mm
· Temperatures up to 200°C
·EHEDG, 3A, FDA, Ex
S1-0005-H08
S1-0008-H05
S2-0013-H10
S2-0013-H15
S2-0018-H07
S2-0018-H10
S3-0027-H10
S3-0027-H15
S3-0038-H07
S3-0038-H10
S4-0055-H10
S4-0055-H20
S4-0079-H07
S4-0079-H15
S5-0116-H10
S5-0116-H20
S5-0168-H07
S5-0168-H15
S6-0260-H10
S6-0260-H20
S6-0353-H07
S6-0353-H15
S1-0005-V08
S1-0008-V05
S2-0013-V10
S2-0013-V15
S2-0018-V07
S2-0018-V10
S3-0027-V10
S3-0027-V15
S3-0038-V07
S3-0038-V10
S4-0055-V10
S4-0055-V20
S4-0079-V07
S4-0079-V15
S5-0116-V10
S5-0116-V20
S5-0168-V07
S5-0168-V15
S6-0260-V10
S6-0260-V20
S6-0353-V07
S6-0353-V15
X Series CAM rotor pump, Gear pump Series X SSP pump, SSP pumps
Flow up to 115m 3/ h Pressure: 15bar Caliber: 25-150mm
SSP Series X stainless steel rotary lobe pumps provide the ultimate solution for the Pharmaceutical,
Biotechnology, Fine Chemical and Speciality Food industries where product integrity and cleanability
are paramount.
The optimized pump head geometry and characteristic multi-lobe rotors ensures low-shear operation with
minimum pulsation, making the pump ideal for gentle transfer of delicate and sensitive media.
Series X pumps are EHEDG certified as fully CIP cleanable to their protocol. In addition,
the Series X pump range conforms to USA 3A Sanitary Standard and is ATEX certified
The Series X pump range has twelve pump head displacements ranging from 0.05 litres/rev to 3.80 litres/rev.
? Flow rates up to 115 m3/h
? Differential pressures up to 15 bar
? Port sizes from 25mm to 150mm
X1-0005-U06
X1-0005-U12
X1-0007-U07
X2-0013-U05
X2-0013-U15
X2-0018-U07
X3-0027-U05
X3-0027-U15
X3-0035-U07
X4-0046-U05
X4-0046-U15
X4-0063-U05
X4-0063-U10
X5-0082-V15
X5-0115-V10
X6-0140-V15
X6-0190-V10
X7-0250-V15
X7-0380-V10
L Series CAM rotor pump, Gear pump Series L, SSP pump, SSP pumps
SSP Series L stainless steel rotary lobe pumps provide the simple solution to many processes,
fulfilling a wide range of application requirements throughout various industries worldwide.
Handling from low to high viscosity pumped media the characteristic smooth, low shear pumping
action is ideal for delicate media and where organic solids in suspension, creams, froths, gels,
emulsions and mixtures are to be pumped.
Series L pumps are suitable for CIP (Cleaning In Place) and conform to USA 3A Sanitary Standard.
In addition, the Series L pump range is EHEDG accredited for the highest level of cleanability.
The Series L pump range has six pump head displacements ranging from 0.17 litres/rev to 0.82 litres/rev.
? Flow rates up to 48 m3/h
? Differential pressures up to 8 bar
? Port sizes from 40mm to 80mm
L2-0017
L2 - 0021
L3 - 0032
L3 - 0040
L4 - 0064
L4 - 0082
L2-0017
L2-0021
L3-0032
L3-0040
L4-0064
L4-0082
M Series CAM rotor pump, Gear pump Series M, SSP pump, SSP pumps
SSP Series M stainless steel gear pumps are designed for low volume fluid transfer duties for application
areas such as filling machines, dosing and sampling, throughout Chemical, Food, Pharmaceutical and other
related industries.
Stainless steel and PTFE components combined in a traditional gear pump construction provide easy cleaning
and simple maintenance.
The Series M pump range has three pump head sizes.
? Flow rates up to 1500 l/h
? Differential pressures up to 7 bar
M2-000S-H07
M2-000M-H07
M2-000L-H04

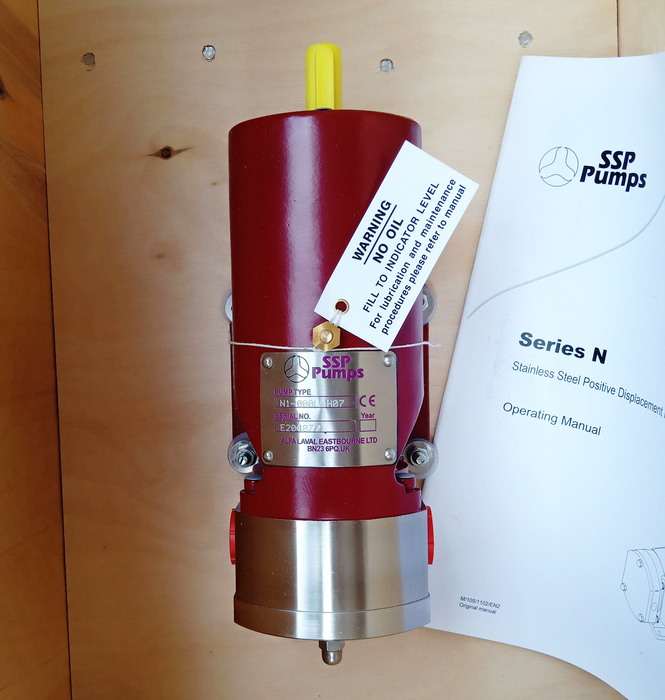

N Series CAM rotor pump, gear pump Series N, SSP pump, SSP pumps
Flow up to 2300 l/h Pressure: 7bar Caliber: 6-25 mm
SSP Series N stainless steel rotary lobe pumps are designed for low volume fluid transfer duties within
application areas such as laboratories, pilot plants, chemical processing, food processing, electroplating
and film processing.
Series N pumps are highly compact, ideal for installations where space is restricted. The Series N pump
offers users both very low energy consumption and easy maintenance
The Series N pump range has two pump head displacements, 2.05 litres/100 rev and 3.86 litres/100 rev.
? Flow rates up to 2300 l/h
? Differential pressures up to 7 bar
? Port sizes from from 1/4 in (6 mm) to 1 in (25 mm)
N1-000S-H05
N1-000S-H07
N1-000L-H05
N1-000L-H07
D Series CAM rotor pump, Gear pump Series D, SSP pump, SSP pumps
Flow up to 180m 3/ h Pressure: 15bar Caliber: 80-150mm
SSP Series D ductile iron rotary lobe pumps fulfill positive transfer duties throughout industry
where the use of stainless steel for pump head components is not essential, within application
areas such as Petrochemicals, Chemical, Paper, Paints and Polymers, Petfood, Chocolate, Sugar and
Environmental / Industrial Waste Treatment.
The Series D in standard specification has its pump casing and tri-lobe rotors manufactured from
ductile iron for non-sludge applications. For sludge duties the tri-lobe rotors have a metal insert
covered with either NBR or urethane, both giving long term wear resistance. The urethane rotors can
be supplied slotted, providing grit channels to improve rotor life.
The Series D pump range has nine pump head displacements ranging from 0.79 litres/rev to 6.00 litres/rev. The series d pump range has nine pump head displacements ranging from 0.79 litres/rev to 6.00 litres/rev.
? Flow rates up to 180 m3/h
? Differential pressures up to 15 bar
? Port sizes from 800mm to 150mm
D4-0079-H15
D4-0095-H10
D4-0095-H05
D4-0140-H05
D5-0168-H15
D5-0200-H10
D5-0200-H05
D5-0290-H05
D6-0353-H15
D6-0420-H10
D6-0420-H05
D6-0600-H05
Series A, SSP pump, SSP pumps Series A, SSP Pumps
Flow up to 680m 3/ h Pressure: 10bar Caliber: 150-300mm
SSP Series A stainless steel rotary lobe pumps are designed for high volume fluid transfer duties and
are amongst the world’s largest pumps of this type
Series A pumps are engineered to order, customised to suit application requirements throughout Chemical,
Food and Pharmaceutical processes.
The Series A pump range has five pump head displacements ranging from 550 litres/100 rev to 2270 litres/100 rev.
? Flow rates up to 680 m3/h
? Differential pressures up to 10 bar
? Port sizes from 150mm to 300mm
A7-0550-H07
A8-0745-H10
A8-1149-H03
A9-1507-H10
A9-2270-H10
G Series CAM rotor pump, Gear pump Series G, SSP pump, SSP pumps
Flow up to 680m 3/ h Pressure: 10bar Caliber: 150-300mm
SSP Series G stainless steel rotary lobe pumps are designed for high volume fluid transfer duties and
are amongst the world’s largest pumps of this type
Series A pumps are engineered to order, customised to suit application requirements throughout Chemical,
Food and Pharmaceutical processes.
The Series G pump range has five pump head displacements ranging from 550 litres/100 rev to 2270 litres/100 rev.
? Flow rates up to 680 m3/h
? Differential pressures up to 10 bar
? Port sizes from 150mm to 300mm
G7-0550-H07
G8-0745-H10
G8-1149-H03
G9-1507-H10
G9-2270-H10
Single Disc, SSP pump, SSP pumps Single disc, SSP pumps
Flow up to 52 meters 3/ hour pressure: 3bar
SSP Dual Disc pumps are designed for use within effluent and industrial treatment processes where arduous duties
in harsh conditions exist.
Dual Disc pumps have a glandless disc design providing indefinite dry running capability. This design results in
good self-priming performance and unparalleled tolerance of problem solids including rag, fibrous matter and grit.
Flow rates up to 52 m3/h
Differential pressures up to 3 bar
Sludge thickness content up to 10%
DD50
DD75PS
DD100PS
